Case

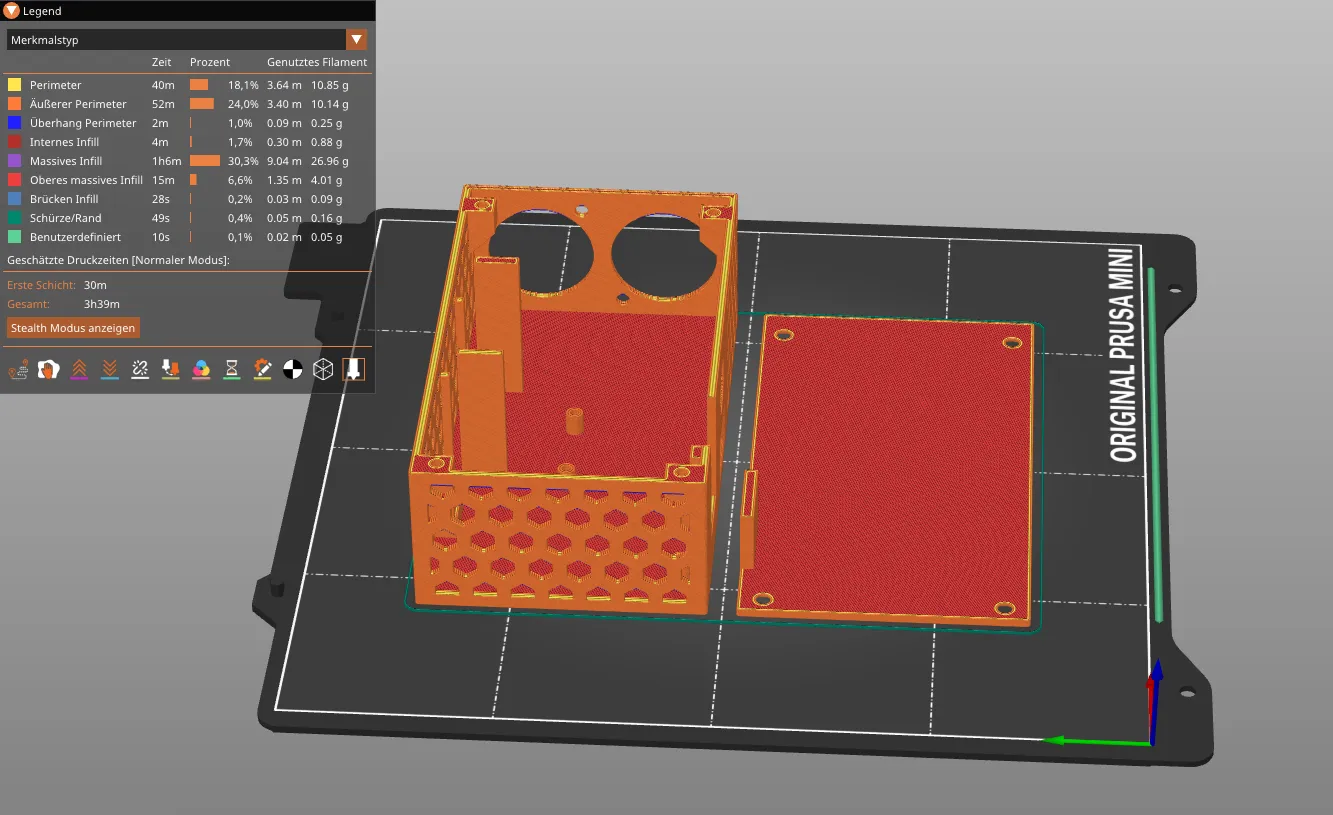

The enclosure is 3D-printable, and all print files live in assets/case/. If
you would rather adapt the model than slice it as-is, the current case is also
on OnShape,
from where you can export it in any format you like.
Print hardware
Section titled “Print hardware”In addition to the 3D print, the case needs some parts for assembly.
| Count | Part | Location |
|---|---|---|
| 6x | M2x5 screw | Case lid, ESP32 |
| 2x | M2.5x5 screw | W5500 |
| 4x | M3 screw | XLR sockets |
| 4x | M3 nut | XLR sockets |
